sensegood color spectrophotometer

  Greetings! J



Sensegood Instruments offers a benchtop or table top yet portable color spectrophotometer.

The same instrument visible vis spectrophotometer works as a full spectrum handheld portable digital colorimeter, photo colorimeter, photoelectric colorimeter, color meter, color spectrometer, color analyzer instrument, color difference meter, color matching machine, whiteness meter tester, or color spectrum measurement instrument in general that assists you in optimizing the color quality & consistency of your product.

This industrial and laboratory spectrophotometer instrument works on a principle of true color LED beam reflectance spectrophotometry; and it comes at a most affordable price.

The world is color. We understand exactly why the color is important for you. Achieving right color requires first measuring it accurately. Ensure color quality and consistency of your product using Sensegood Spectrophotometer.

Sensegood Colorimeter Spectrophotometer is thoughtfully developed considering all the facilities that you desire, to assist you in optimizing the color quality of your products. We have this all in one color measurement instrument for you regardless of what you want to measure.


Above photo: Spectrophotometer is set for benchtop operation. It shows its functional aspects by featuring various screens.

Sensegood portable digital photo colorimeter - color spectrophotometer best in class features:
•        World s only contact as well as non-contact color measurement instrument   PATENTED Proprietary Technology
•        World s one of the most affordable spectrophotometer with niche technology
•        One touch operation: Just press GO to measure


Features contd...
•        Fast, Hassle free, No warm up time required
•        Easy operating system ? Color resistive touch TFT
•        Single screen compilation: All color computational data is kept at one place for ease of analysis: XYZ, Yxy, CIE L*a*b*, CIE L*C*ho, CIE L*u*v*, HunterLab, CCT - color temperature, peak wavelength, RGB, rgb, CMYK, Hex color code
•        It can capture, and evaluate the color of any sample; be it solid, liquid, granules or powder
•        Versatile: Same instrument can be configured to work as benchtop/table top, handheld/portable and online/in-process color measuring instrument


Above photo: Spectrophotometer is set for benchtop operation. Note that the instrument is compact in size and portable. Photo shows the color measurement of pills as an example. Similarly any sample can be placed in sample tray.
Machine's rotating sample platform rotates the sample tray while measuring. It ensures the measurement of averaged and accurate color attributes of the sample.
This is a non contact color measurement configuration, where sample does not required to be in contact with the machine. Hence this machine enables user for color measurement in liquid, granules or powder.


The photo above represents the contact color measurement configuration where the sample is in direct contact with the machine while color measurement.
This enables the user to measure the color of any specific spot or small object. You can perform surface measurements such as paper, textile, plastic, coatings, ceramics, etc…


The photo above represents the various possible configurations of this versatile color measurement instrument. So you don't have to purchase different instruments and setups. Just one Sensegood spectrophotometer suffices for every stage of your production and analysis.

Features contd...
•        Settable color tolerance and Alarm (audible and visible) indications
•        Color difference measurement: Color matching instrument: Evaluates color match percentage between standard reference and production samples
•        Displays Match% value in green (Pass indication) if it is greater than the set Alarm Limit
•        Displays Match% value in red (Fail indication) and plays audible alarm if it is less than the set Alarm Limit
•        Indication of whether the sample is Lighter/Duller, Redder/Greener, and Yellower/Bluer than the reference
•        Reference color data can be saved in the memory for future color comparison with the sample

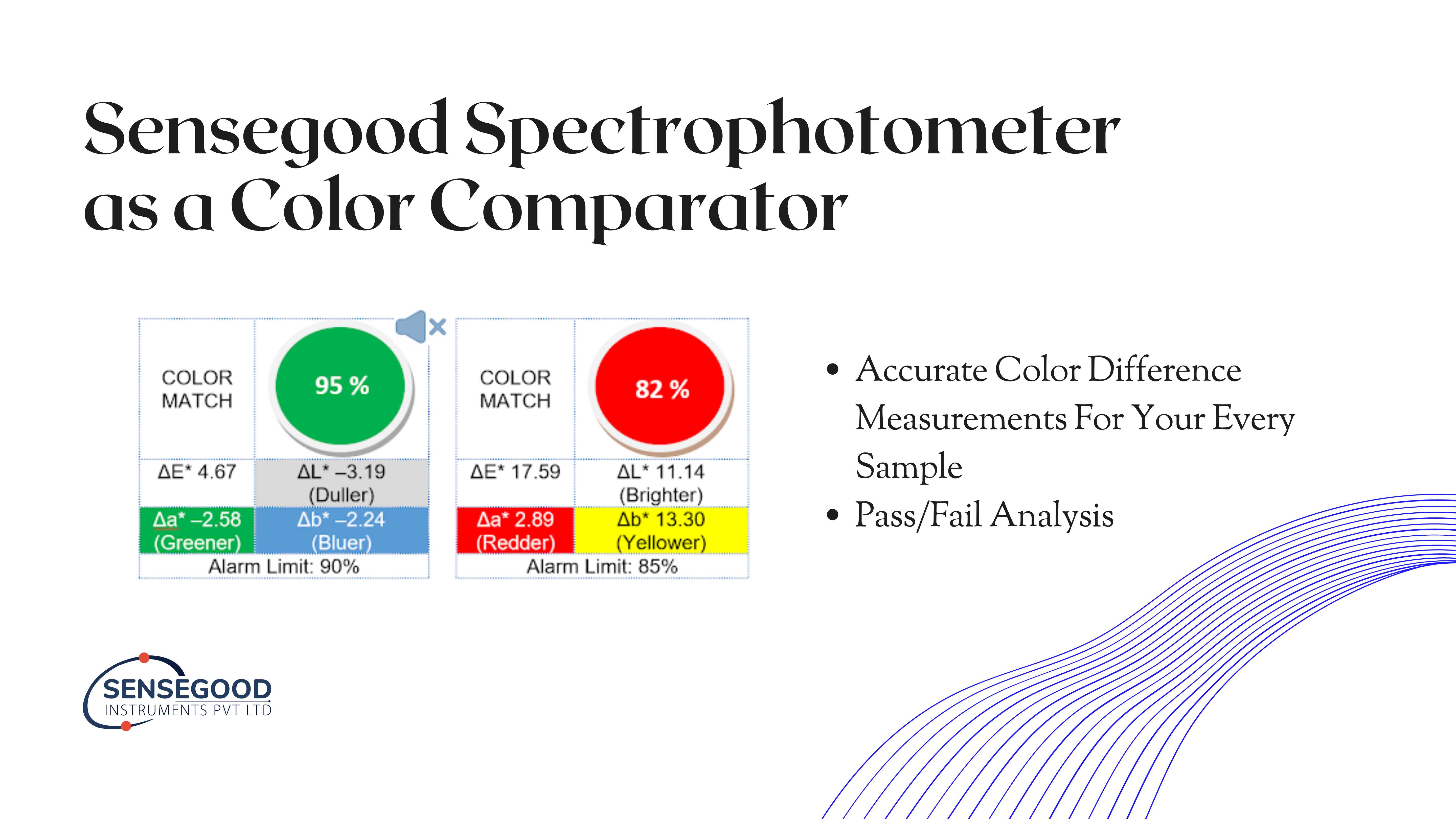

Above photo mentions how one can set alarm limit / color tolerance and check for color match% between production sample and desired standard reference. Thus instrument also works as a color difference meter.
The instrument can measure the color difference in any configurations: in contact as well as in non contact color measurements.


Above example photo explains maintaining color consistency using Sensegood visible Spectrophotometer. Same way it can be done for any other samples. Our instrument can perform Color difference, color consistency, and color matching measurements for any samples - solid, liquid, granules or powder.
The instrument can measure the color difference in any configurations: in contact as well as in non contact color measurements.

Features contd...
•        Graphical representation of spectra for 400nm to 700nm with 1nm resolution
•        Sensegood Spectrophotometer has rotating sample platform and a large field of view. This along with the averaging mode active; ensures best reproducibility in measurements even in non-uniform samples.
•        Auto repeat measurement mode. Along with this mode, establish color tolerances and evaluate color match percentage
•        Inbuilt library of color indices: Various whiteness indices (WI), Yellowness index (YI), Baking contrast unit (BCU), Tomato color index (TCI), Ripening index a*/b* and b*/a*, Citrus color index (CCI), Citrus number (CN), Citrus red index (CR), SCAA Agtron number coffee roast color index
•   NOTE: We have another dedicated model for coffee roasters which performs coffee roast analysis which can perform all of the following:
•
•  1. Type of roast: City roast, American roast, New England, roast etc...
•  2. Measure Agtron Commercial scale
•  3. Measure Agtron Gourmet scale
•  4. Measure Probat Colorette scale
•  5. Measure ColorTrack scale
•  6. Measure CIE Lab of coffee (D65/10)
•
•  Contact us if you are interested.
•
•        No field maintenance costs: Scratch proof sensor optical assembly.
•        Compact in design and comparatively light in weight




Above: User can choose any appropriate color index from the available library based on the application of interest.

General specifications: Digital Portable photoelectric colorimeter vis / visible spectrophotometer:
•       Spectral display range: 400 to 700nm
•       Spectral display resolution: 1 nm throughout the spectra
•       Average inter-measurement agreement: Better than 0.2 Delta E* CIELab
•       Operating principle: Reflection visible spectrophotometry
•       Color space: CIELab, HunterLab, CIELCH, CIELuv
•       Simulated illuminants: A,C,D65,D50,D55,D75
•       Simulated observers: 2°,10°
•       Other supported color attributes: Peak wavelength, color temperature CCT, XYZ, Yxy, RGB, rgb, CMYK, Hex Color Code, Peak wavelength, CCT Correlated color temperature
•       Color difference: DE*Lab,DL*,Da*,Db*,Color Match%
•       Illumination source: Complementary compensating 98+ CRI true color full spectrum LEDs: Typically 22 times long life than any other bulb
•       Measurement duration: Without averaging: < 0.5 second (motor off)
•       Large contact measurement probing area: 28 mm
•       Warm up time: Not required, quick start operation
•       Meter type: Spectrophotometer, Colorimeter, Whiteness meter, Color Analyzer, Color Difference Meter
•       Auto measurement mode: Instrument auto wakes up for measurement at user selectable repeat interval
•       User selectable repeat interval: 30/60/120 seconds
•       Rotating platform speed: 15RPM
•       Color display: 69mm resistive touch TFT
•       Software: Computer interface utility - SensegoodSmart
•       Interface: Wired communication using USB interface






In above photo: Using this software, customer color data can be saved (.pdf, .jpg, .csv, .sego - our proprietary color data file) to computer for record keeping. One can print, share, import and export (instrument <-> computer) color measurement data which further enables data portability and global color management. You can create your own database library and you can find the closest match. You can also perform color based grading / color quality grading using this software.

NOTE: This instrument does not support real time measurement and analysis. We have a separate instrument model that supports the real time measurement. It can measure real time R,G,B or real time L,a,b, delta E, Color Match%, with all the details on graph. You can set the upper and lower thresholds as well. Contact us if you need real time instrument and software.

General specifications contd...
•       Low power consumption: 0.8 Watts average. 8hrs a day, 6days a week 48+hr of operation using 10Ah power bank.
•       Battery: Not supported. It works with: 5V adapter or power bank or computer s USB port.
•       Niche electronics: Over voltage protection, over current protection, smart fuse technology
•       Factory reset: Provision for software as well as hardware reset is available
•       EMI: Extremely suppressed Electromagnetic Interference (EMI). Strongest frequency component is 80dB down
•       Operating Humidity Range: 0% to 85% (non-condensing)
•       Operating Temperature Range: 0C-40C or 32F-104F)
•       Storage Temperature Range: -20C-50C OR -4F-122F)
•       Material: ABS engineering plastic, polyamide technopolymer and steel
•       Shipping dimensions & weight: 30 cm x 22 cm x 10 cm, 2 Kg
•       Warranty: 1 Year

Packing list: Package includes 5V adapter, data cable, 4inch and 6inch sample trays along with required accessories.



Photo displays an instrument along with provided accessories.

Further it is provided with SensegoodSmart utility - A computer interface software, downloadable from Sensegood Instruments website. It is a complete color management solution with all the facilities that you could ask for. (Note that if you need additional real time measurement instrument and software, contact us.)

Sensegood Spectrophotometer/ Colorimeter is standardized:
•        Supports: Commission Internationale de l'éclairage CIE1931, CIE1964 and CIE1976.
•        Supports: Agtron number which is standardized by SCAA (Specialty Coffee Association of America).
•        Supports: Citrus scores and other color indices standardized by USDA and USFDA.
•        Follows guidelines: Instrumental Color Measurement by American Association of Textile Chemists and Colorists (AATCC).

  Industries that are using our Colorimeters / Spectrophotometers:
•        Color measurement in: Food processing and agriculture products
•        Bio-pharmaceutical industries: Color measurement and consistency control in pharmaceuticals; pills, liquid drugs, APIs, powders, drugs and medicines
•        Plastics: Color measurement and quality-consistency control in extruded and molded plastic products, plaques, and granules
•        Chemicals: Color measurement and analysis in chemicals, pigments, synthetic rubber, resins, salts, fertilizers, pesticides, soaps, toothpastes, and detergents
•        Paper: Color measurement and quality control in pulp, paper and packaging industry
•        Textile: Color measurement and management in textile industry
•        Color measurement and management in leather and footwear industry
•        Cosmetics: Color measurement and quality-consistency control in beauty and cosmetics products
•        Paints: Color measurement and quality-consistency control paints, coatings, pigments, and powders
•        Ceramics: Color measurement and quality-consistency control in ceramics, tiles, slurry, glaze, potteries, and archaeological ceramics
•        Automotives: color management in automobile industry
•        Concrete: Color measurement and quality control in cement, concrete and building materials
•        Wood: Color measurement in wood products
•        Color management & control in architecture & the effect of color on human psychology
•        Measure whiteness in Maida, Flour, Pulp Paper Packaging industry, Sago pearls, Ceramics, Textiles, Linen, pharmaceutical Powders, APIs, chemicals, Rice, Salt, Sugar, Dairy milk powder, etc. Similarly measure Yellowness of paper, rice, etc.
•        Researchers: Sensegood spectrophotometer for researchers, universities, laboratories and hobbyists







Above photo compiles some of the industries that we serve.

Customer Testimonials:

?It was difficult to judge the color difference between two pieces because of the light issue. This instrument makes the task easy by showing color difference in percentage.? - Patel plastics

?I check the amount of baking using this instrument. I can ensure that the cookies are in more consistent texture.? - Krisp Cookies manufacturer

?Generally it was difficult to convince customers for closest color matched clothes. Now this machine does the job for us. Even customers like this our new way.? - Apparel store owner

?We have started checking color of samples in every production batch using this machine. Now we are ensuring that no off colored butter goes to the market.? - Peanut butter manufacturer

?It is really a problem in plastic granules color repeatability. Now my customer complaints have been drastically reduced. Thanks to Sensegood, I can ensure that the input is within the color tolerance.? - Mangal Plastics

?I could deliver similar tiles to that of a sample given by the customer. He is happy that he has got pretty good the same appearance.? - Shree Umiya Tiles

?I use this meter for determining the whiteness of maida.? - Sabar Flour mill

?We just love how this machine can work in various configurations. It assists in ensuring the color consistency at every production level till paper whiteness and yellowness measurements.? ? Pulp and Paper industry user

?This tool has enabled me in carrying out my research in studying the color properties of grains that are grown in different regions.? - DICT University researcher

Shipping:
We ship typically with DHL, Fedex, Unique Air, Aramex, UPS or equivalent. Price includes the freight charges. However, please note that sometimes a courier company/ delivery agent may ask you to pay the import customs duties & taxes specific to your country. Please provide nearest major city address if your address falls in remote area. The item will be shipped directly from the factory! We will try our best to give our customers a good and pleasant purchasing experience! We welcome your any-time order!

Some of our world wide dispatches:


Contact & Feedback:
We are committed to delivering quality products leading to customer satisfaction for building trust and long term relations. We have forged an important bond with our customers across the globe.
For any queries, please contact us via eBay message. We will get back to you.

We help your business achieve the highest level of color integrity so your product - and your customer's product - comes out ahead. PURCHASE Sensegood Instruments and be technology driven company NOW!

Thank you for your interest in Sensegood Spectrophotometer! Good Day from Sensegood Instruments!
